<center>LMG 20 TON Advantage Hydraulic Mold Press Trink's Inc w/ Bosch Rexroth Pump Heated Platens (10509)</center>
</td>
</tr>
</tbody>
</table>
<style type="text/css">.acttbl > font { font-family: Arial, Times New Roman, Verdana; color: #27578D; font-size: 13px; }
</style>
<!--AUCTIVABODYSTART--><!--AUCTIVAHEADERSTART-->

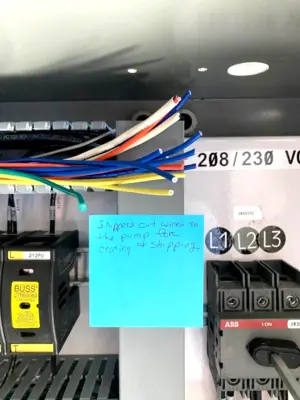

<div align="center">Used, out of working environment, unable to test. Wires were cut from pump to press when it was moved, wiring diagrams are included but may not be complete. Will need someone to rewire it. Display in good condition, press in very good cosmetic condition. Sold AS IS returns accepted, may be inspected.</div>
<ul>
<li style="text-align: left;">Manufacturer: Trink's Inc. LMG Bosch Rexroth</li>
<li style="text-align: left;">Model: 20 Ton Mold Advantage Hydraulic Press with Bosch Rexroth Pump</li>
<li style="text-align: left;">Includes User Manual and Wiring Diagram on Flash Drive</li>
<li style="text-align: left;">Includes:
<ul>

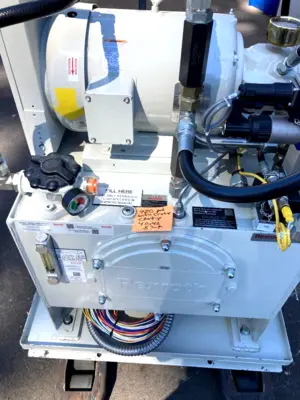

<li style="text-align: left;">Bosch Rexroth R978056286</li>
<li style="text-align: left;">Pump 7.5 HP, 1725 RPM</li>
<li style="text-align: left;">208/230 V</li>
<li style="text-align: left;">Thermal Trasfer Products Heat Exchanger RM-2s 150 psi, 350°F</li>
<li style="text-align: left;">RS26028194 10 Bar/g</li>
<li style="text-align: left;">10Ten 0100</li>
<li style="text-align: left;">800-MR-M-US-F</li>
<li style="text-align: left;">R90038420 4WREE6E04-24/G24K31/A</li>
<li style="text-align: left;">Rexroth RVB3/4N2/A 12-12</li>
<li style="text-align: left;">Replacement Element R928028572 installed 07/2019</li>
<li style="text-align: left;">Heated Platens</li>
</ul>
</li>
<li style="text-align: left;">The following is taken from the manufacturer's manual for this press and may not fully pertain to this item, included for reference, please look at pictures to verify:</li>
</ul>
<div style="text-align: left;"> </div>
<div style="text-align: left; margin-left: 80px;">The Advantage Press supplies the long - awaited answer to the molding industries for a versatile, reliable, press that can simply and quickl y be programmed .<br>
</div>
<div style="text-align: left; margin-left: 80px;">Adjustable High Speed - Transfer and clamp cylinder advance and retract high speeds are user programmable for optimum cycle time.<br>
<br>
Adjustable Mold Ejection Speed (Optional ) - Mold ejection speed and reset position are user programmable for controlled mold ejection.<br>
<br>
Energy Saving Hydraulic Circuit - Tube/fin oil - to - water heat exchanger to maximize oil contact for optimum efficiency and temperature proportioning water control valve for acc urate regulation result in significant savings in utility sourced water.<br>
<br>
Extra Thick Platen - Extra heavy upper platen design to minimize platen deflection.<br>
<br>
Hydraulic Oil Over Temperature Protection - Press fault alarm will appear on screen, cycle in progress will continue and shut down when clamp opens.<br>
<br>
Menu Driven Operator Interface - Programming of all press functions and parameters are done via a menu interface and integr al touch screen. All screens have “help” facilities explaining the parameter to be entered and its allowable range.<br>
<br>
Mold Over Temperature Cut - off (Optional ) - Mold heat shut down when this setting is reached.<br>
<br>
Mold Protection - Low pressure clamp closing with .001” resolution. Will detect misaligned and double strips. Programmable mold protect force setting for extra clamp tonnage (max 9.99 tons) to overcome springs, friction, etc...<br>
<br>
Press Fault Ind icators - Press faults are displayed onscreen as fault messages.<br>
<br>
Manifold Mounted Valves – Manifold mounted valv es for minimum pipe shock and vibration, with plug - in connectors, circuit test ports, and solenoid indicating lights for ease in trouble shooting.<br>
<br>
Transfer Cylinder Control System - Transfer cycle fully prog rammable for velocity and/or pressure profile steps. Double closed loop electronics provide positive self - compensating velocity and pressure control. manual 202730<br>
<br>
Transfer Ram Follow Through - Transfer ram can be programmed to advance upon opening of molds to aid in cull removal.<br>
<br>
Clamp Clamp Tonnage 20 ton (18 tons - metric)<br>
Clamp Stroke, 7 In. (177.8 mm) Daylight, Platen Open, 13.5 In. (342.9 mm)<br>
Die Space: L - R between Tie Rods, 15 In. (381 mm) Front to back overall 15 In. (381 mm)<br>
Platen, Working height, 3 4.5 In. (876.3 mm)<br>
Clamp, Fast Close, IPM 145 (61.38 mm/s)<br>
Clamp, Slow Close, IPM. 2 - 20 (0.84 - 8.47 mm/s)<br>
Clamp, Fast Open, IPM 195 (82.55 mm/s)<br>
Transfer Transfer Tonnage (U.S. tons) 0.7 Ton (0.64 tons - metric) Transfer Stroke, inches 4 In. (101.6 mm)<br>
Electrical Motor Power Supply 400 / 3 / 5 0<br>
Motor Horse Power 7 . 5 hp<br>
Heater Outlets per Platen 6 (Integrated)<br>
Maximum KW per Platen 7.5 kw Maximum<br>
Heater Wattage per outlet 1500<br>
Dimension Overall Height 71 Inches (1803.4 mm)<br>
Floor Space, 54 x 42 Inches (1371.6 x 1066.8 mm)<br>
Weight 3,000 Lbs (1360.77 kg)<br>
Hydraulic Pump Specifications. Variable displacement 8. 3 GPM (31.42 lpm)<br>
Oil capacity, 20 GAL (75.71 L)</div><div style="text-align: left; margin-left: 80px;"><br></div><div style="text-align: left; margin-left: 80px;"><img src="https://i.machineryhost.com/36d7534290610d9b7e9abed244dd2f28/f571173ac4b17911ca52a63924a5cb74/large-s-l1600.jpg"><br>
</div>
<div align="center">TO RECEIVE REFUND FOR SHIPPING CLAIM:<br>
DAMAGE TO SHIPMENT MUST BE NOTED ON BOL (FREIGHT) WITH PHOTO OF DAMAGE NOTE<br>
PHOTOS OF DAMAGE OF ITEM AND BOX/CRATE MUST BE TAKEN<br>
KEEP ALL PACKAGING<br>
<br>
Sold as is with 30 day Right of Return, only pictured items included<br>
Easy return/refund for any reason<br>
(IF DAMAGED DUE TO FREIGHT CARRIER HANDLING YOU MUST FOLLOW STEPS ABOVE TO RECEIVE REFUND) <br>
<br>
Anacapa Equipment<span style="font-size:18.0pt;"></span></div>
