ElectroDamp Vibration Isolation Table System Ametek TMC HAWK Insight EDII 9421

Description

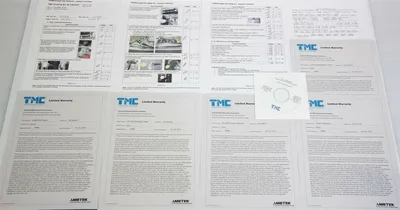

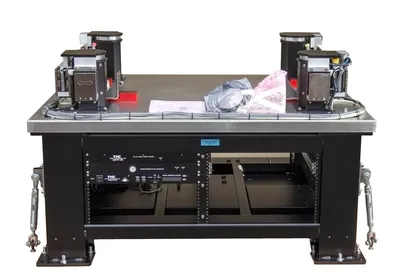

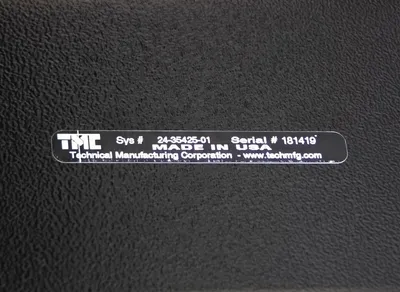

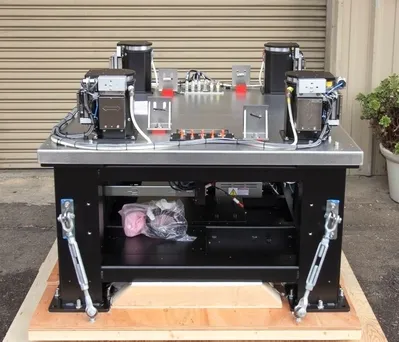

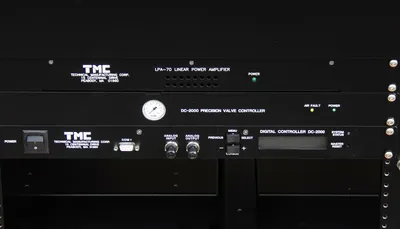

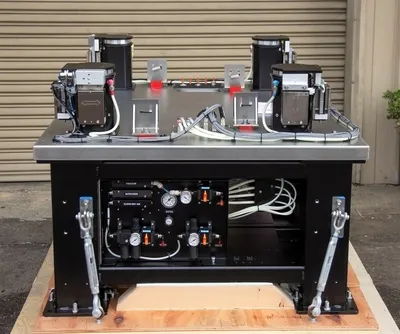

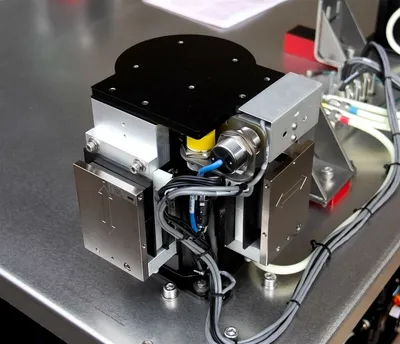

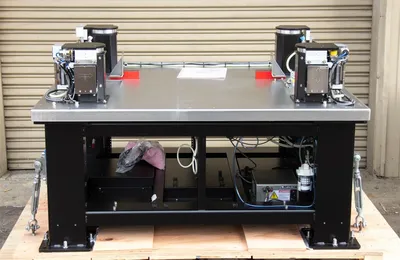

img{max-width:100%} Ametek TMC HAWK/Insight EDII ElectroDamp System Vibration Isolation Table 9421New old stock. This unit is in great cosmetic condition manufactured for Bruker Insight Atomic Force Profiler (AFP) but never used. It was removed from a vacuum sealed bag for pictures. See pictures for more detail. Manufacturer: Ametek | TMCModel: HAWK Insight EDII (ElectroDampII) SystemDate of Shipment New: 04/04/2014Includes:Insight EDII System TMC Table: 24-35425-01Power Transformer Model: 22-33171-01Linear Power Amplifier, LPA-70 Model: 22-29474-01DC-2000 Controller, Insight Model: 22-35420-01DC-2000 Precision Valve Box Model: 20-27955-01CD: Controller Software PN: 95-34577-04, Setup & Operation Manual PN: 96-29581-01Spare Air Tubing Specifications: (These specifications were taken from an online user manual and may not be accurate to this product.)GeneralSettling time: 0.2 s **Active degrees of freedom: 6Height control accuracy: < 10 µm at sensorsLinear Actuators (horizontal & vertical)DC resistance: 5 OForce constant: up to 12 lb./A | 55 N/AMax. continuous force: 25 lbs. | 110 NPeak force @ 7 A: 87 lbs. | 385 NElectrical time const.: 2.6 msStroke: 0.25 in. | 6.4 mmTransverse clearance: 0.09 in. | 2.3 mmStray field: < 1 G @ 2 in.Dimensions (WxDxH): 2.8 x 6.8 x 4.5 in.Valving (active only)Valve type: Proportional E/V servoControl type: Pressure or air flowMax. flow rate: 1.5 SCFMAir consumption (4 isolators): < 2 SCFM (no stage motion)- 3 dB response: = 10 Hz typ.Height Control SensorsType: Non-contacting inductive (eddy current)Electronic configuration: Two-wire NAMUR; Three-wire 30 or 18 mm dia.Range: 15 mm nominal for 30 mm wire; 6 mm nominal for 18 mm wireResolution: < 1 µmPassive Pneumatic MountStandard capacities: 1,000, 2,500, 3,300, 5,700 lbs. @ 80 PSIDamping (10:1): < 3 sDC-2020 Digital ControllerProcessor: Dual core: DSP @ 150 MHz & Cortex M3 @ 75 MHzAnalog I/O: 32/24 channels (16/16 bit)Sampling rate: 5 kHz nominalFront panel: Power switch, 3-color status LED, Ethernet RJ-45, MicroSD card slot, 2x BNC sockets (each can be input or output), 2x USB 2.0 ports (Type B and Micro B), FW upgrade buttonRear panel: Power entry, Analog I/O sockets, Pneumatic ports, Ethernet RJ-45, 1x USB 2.0, RS-232 DB 9, Relay socketUser interface: GUI via USB or ethernetPower: 90-240 VAC, 50-60 Hz, 100 W max.Dimensions (WxDxH): 16.8 x 9.0 x 1.75 in.Power AmplifierChannels: 8Max. current per channel: 7 AType: LinearPeak power: 700 W totalCooling: Ambient, forced airProtection: Resettable fuses, electronic thermal, over current, under voltageOperation: Remote or manualDimensions: 1 RETMA rack unit height x 15 in. (381 mm) depth Dimensions Actual Dimensions: 45 3/4 x 56 x 35"Shipping Dimensions: 77 x 59 x 48"Shipping Weight: 2160 lbs Crating Fee: Ask for a QuoteSold as is with 30 day Right of Return, only pictured items includedEasy return/refund for any reasonAnacapa Equipment RETURNS Anacapa Equipment Brokers, Inc. (“Seller”) strives to offer excellent customer service. You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items are received in the same condition as sent. We DO NOT ship internationally. If you are using a freight forwarder then returns are VOID. SHIPPING All equipment purchased is shipped within one (1) business day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment. We only charge actual shipping cost. If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost. We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID. LIMITED WARRANTY Buyer acknowledges that the equipment is being sold “as is" and without any warranty of merchantability or fitness for a particular use. The entire risk as to the quality and performance of the equipment is with the Buyer. Should the equipment prove defective following its purchase the Buyer and not the Seller, manufacturer, distributor, or retailer assumes the entire cost of all necessary servicing or repair. Buyer may inspect the equipment prior to purchase and placement of the order. Failure to inspect prior to placement of an order is deemed a waiver of Buyer’s right to inspect. Buyer is responsible for determining the suitability of the equipment for its application. Seller assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the equipment will be installed and operated by qualified personnel. The Buyer agrees that the Seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased. The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty.INDEMNITY Buyer shall be solely liable for, and shall defend, indemnify, and hold Seller, its Affiliates, and all of their respective directors, officers, employees, agents, and independent contractors (“Indemnitees”) harmless from and against any and all damages, liabilities, injuries, losses, costs (including reasonable attorneys and experts fees at trial and on appeal), and expenses which may be incurred by, asserted against, or recoverable from any Indemnitee as a result of any actual or threatened action, suit or proceeding arising out of or relating in any way to the purchase of equipment from Seller. The validity and interpretation of this Agreement and the enforcement thereof shall be governed by the laws of the State of California without regard to any principles governing conflicts of laws. Any dispute arising from the purchase of equipment from Seller must be resolved in the State Courts of California. Powered by SixBit's eCommerce Solution .aucCounter a { text-decoration:none; }.aucCounter span:hover { text-decoration:underline; }.aucHiddenCounter { display:none; }.aucCounterOrangeText { color:#FB6D05; font-family:Arial; Font-size:13px; Font-weight:bold; }.aucCounterBlueText { color:#0068ac; Font-family:Arial; Font-size:11px; } Track Page Views WithAuctiva's FREE Counter
