Andrew Commscope NODE A4 Multi-Band Repeater 4 Position Subrack + Modules 10172

Description

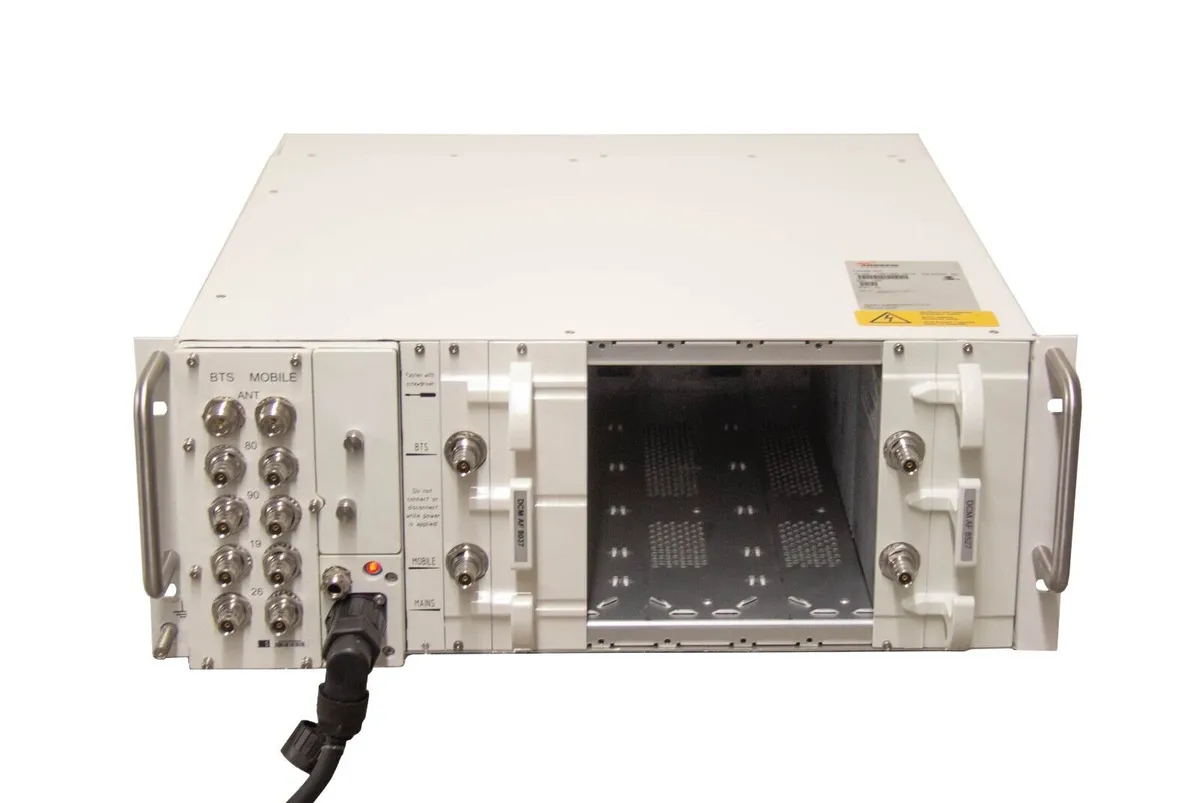

img{max-width:100%} Andrew NODE A4 Multi-Band Repeater 4 Position Subrack w/ Modules USED (10172)RIn fair cosmetic condition. Powers on, but after a few seconds the yellow light turns Red, this could be because the item is not properly connected. Unable to test further. Has a few very minor scuff marks. The The User Interface 2 (UI2) Board kit that is normally installed behind the BTS Mobile Modules is MISSING and NOT Included. May need calibration. See pictures for more detail. Manufacturer: Commscope | AndrewModel: NODE A4 | 7561392-0018 Mfg: Oct 2009Also Includes:Commscope DCM AF 8527 7577540-01 Commscope Fin Ampl. 45 W 7572962-01 851-894 MhzCommscope Andrews 7574024-00 Type: E10192 Multi-Band CombinerPower CableSpecifications: The following specifications were taken from an online user manual or manufacturer's website and may not be specific to this item, please look at pictures carefully for items included and specifics. These specifications are for reference only.Number of supported RF cards: 4Number of supported sub-bands per rack: 48*Bandwidth available in Uplink and Downlink per rack, MHz: up to 240Gain adjust range, dB: 30 in steps of 1Filter selection step size, kHz: 10Output Power step size in Powermode, dB: 1Output Power accuracy over all conditions, dB: ±2Maximum Input Power without damage, dBm: +10Maximum Input Power without overdrive, dBm: -20P-1dB, dBm Uplink: +35RF card AX27 Downlink: +32RF card AX37 Downlink: +42OIP3, dBm Uplink: +52RF card AX27 Downlink: +48 RF card AX37 Downlink: +63Noise figure@ maximum gain, dB Uplink: 4.0 Downlink: 4.0@ minimum gain, dB Uplink: 9.0 Downlink: 16.0Delay, µs Standard filter set: 6Power supply Standard: 100 to 240 Vac Option: 36 to 72 VdcPower consumption, Watts: 120 RF card AX27: 70 RF card AX37: 145Antenna port connectors: N FemaleSpurious Emissions, dBm: according to FCCActual Dimensions: 19x7x21Actual Weight: 52 lbsShipping Dimensions: ~32x36x12"Shipping Weight: ~ 100 lbs Crating Fee: Ask For A QuoteSold as is with 30 day Right of Return, only pictured items includedEasy return/refund for any reasonAnacapa Equipment RETURNS Anacapa Equipment Brokers, Inc. (“Seller”) strives to offer excellent customer service. You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items are received in the same condition as sent. We DO NOT ship internationally. If you are using a freight forwarder then returns are VOID. SHIPPING All equipment purchased is shipped within one (1) business day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment. We only charge actual shipping cost. If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost. We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID. LIMITED WARRANTY Buyer acknowledges that the equipment is being sold “as is" and without any warranty of merchantability or fitness for a particular use. The entire risk as to the quality and performance of the equipment is with the Buyer. Should the equipment prove defective following its purchase the Buyer and not the Seller, manufacturer, distributor, or retailer assumes the entire cost of all necessary servicing or repair. Buyer may inspect the equipment prior to purchase and placement of the order. Failure to inspect prior to placement of an order is deemed a waiver of Buyer’s right to inspect. Buyer is responsible for determining the suitability of the equipment for its application. Seller assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the equipment will be installed and operated by qualified personnel. The Buyer agrees that the Seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased. The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty.INDEMNITY Buyer shall be solely liable for, and shall defend, indemnify, and hold Seller, its Affiliates, and all of their respective directors, officers, employees, agents, and independent contractors (“Indemnitees”) harmless from and against any and all damages, liabilities, injuries, losses, costs (including reasonable attorneys and experts fees at trial and on appeal), and expenses which may be incurred by, asserted against, or recoverable from any Indemnitee as a result of any actual or threatened action, suit or proceeding arising out of or relating in any way to the purchase of equipment from Seller. The validity and interpretation of this Agreement and the enforcement thereof shall be governed by the laws of the State of California without regard to any principles governing conflicts of laws. Any dispute arising from the purchase of equipment from Seller must be resolved in the State Courts of California. Powered by SixBit's eCommerce Solution .aucCounter a { text-decoration:none; }.aucCounter span:hover { text-decoration:underline; }.aucHiddenCounter { display:none; }.aucCounterOrangeText { color:#FB6D05; font-family:Arial; Font-size:13px; Font-weight:bold; }.aucCounterBlueText { color:#0068ac; Font-family:Arial; Font-size:11px; } Track Page Views WithAuctiva's Counter
