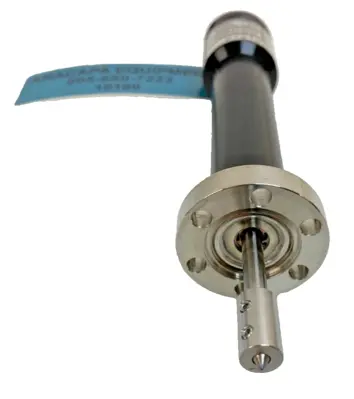

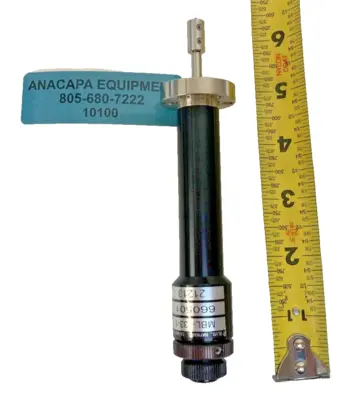

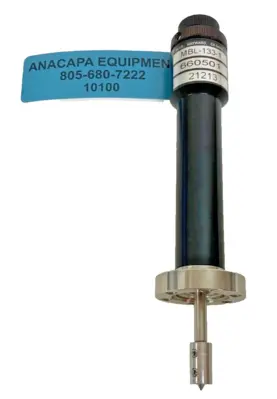

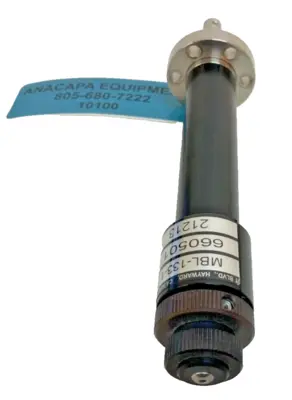

MDC Vacuum Linear Actuator MBL-133-1 660501 Miniature Feedthrough (10100)

Description

MDC Vacuum Linear Actuator MBL-133-1 660501 Feedthrough (10100) Good cosmetic condition Manufacturer: MDC Model: MBL-133-1 660501 Ultrahigh vacuum series Linear travel: 1.00" Flange size: 1 1/3" Miniature Linear Feedthrough The following is taken from the manufacturer's website and is included for reference only. May not fully pertain to this listing: ■ 1/2 to 1 inch linear travel ■ Manual or Motorized actuator ■ Linear position lock ■ UHV and HV compatible materials ■ Welded bellows seal ■ Bakeable to 100°C ■ Specifications Material Flange / Actuator body 304ss / Anodized aluminum Shaft seal AM 350 welded bellows Vacuum Range 1x10-11 Torr Temperature Range1 Manual -20°C to 100°C Axial load 2.5 lb maximum Lateral load 6 lb maximum Description MDC miniature linear feedthroughs are specifically designed for in-vacuum light-duty applications. Full revolution of the barrel translates into 0.025" of linear travel. These instruments are available in both manual or low voltage 12 VDC motor configurations. Motor options with an integral magnetic encoder are also available. ULTRAHIGH & HIGH VACUUM SERIES 1 UHV units are bakeable to 230°C with actuator removed and 30°C maximum when motorized. • Metal seal flanges are nonrotatable with clearance holes. Motor controls are not included with the motor options and must be purchased separately. img{max-width:100%} a.imagelink {color:#0000FF;} a:hover.imagelink {color:#0000FF;} a:visited.imagelink {color:#800080;} a.imagelink img.auctionimage { border: 2px solid #0000FF; } a:visited.imagelink img.auctionimage { border: 2px solid #800080; } MDC Vacuum Linear Actuator MBL-133-1 660501 Feedthrough (10100) .acttbl > font { font-family: Arial, Times New Roman, Verdana; color: #27578D; font-size: 13px; } Good cosmetic condition Manufacturer: MDC Model: MBL-133-1 660501 Ultrahigh vacuum series Linear travel: 1.00" Flange size: 1 1/3" Miniature Linear Feedthrough The following is taken from the manufacturer's website and is included for reference only. May not fully pertain to this listing: ■ 1/2 to 1 inch linear travel ■ Manual or Motorized actuator ■ Linear position lock ■ UHV and HV compatible materials ■ Welded bellows seal ■ Bakeable to 100°C ■ Specifications Material Flange / Actuator body 304ss / Anodized aluminum Shaft seal AM 350 welded bellows Vacuum Range 1x10-11 Torr Temperature Range1 Manual -20°C to 100°C Axial load 2.5 lb maximum Lateral load 6 lb maximum Description MDC miniature linear feedthroughs are specifically designed for in-vacuum light-duty applications. Full revolution of the barrel translates into 0.025" of linear travel. These instruments are available in both manual or low voltage 12 VDC motor configurations. Motor options with an integral magnetic encoder are also available. ULTRAHIGH & HIGH VACUUM SERIES 1 UHV units are bakeable to 230°C with actuator removed and 30°C maximum when motorized. • Metal seal flanges are nonrotatable with clearance holes. Motor controls are not included with the motor options and must be purchased separately. TO RECEIVE REFUND FOR SHIPPING CLAIM: DAMAGE TO SHIPMENT MUST BE NOTED ON BOL (FREIGHT) WITH PHOTO OF DAMAGE NOTE PHOTOS OF DAMAGE OF ITEM AND BOX/CRATE MUST BE TAKEN KEEP ALL PACKAGING Sold as is with 30 day Right of Return, only pictured items included Easy return/refund for any reason (IF DAMAGED DUE TO FREIGHT CARRIER HANDLING YOU MUST FOLLOW STEPS ABOVE TO RECEIVE REFUND) Anacapa Equipment RETURNS Anacapa Equipment Brokers, Inc. (“Seller”) strives to offer excellent customer service. You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items are received in the same condition as sent. We DO NOT ship internationally. If you are using a freight forwarder then returns are VOID. SHIPPING All equipment purchased is shipped within one (1) business day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment. We only charge actual shipping cost. If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost. We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID. LIMITED WARRANTY Buyer acknowledges that the equipment is being sold “as is" and without any warranty of merchantability or fitness for a particular use. The entire risk as to the quality and performance of the equipment is with the Buyer. Should the equipment prove defective following its purchase the Buyer and not the Seller, manufacturer, distributor, or retailer assumes the entire cost of all necessary servicing or repair. Buyer may inspect the equipment prior to purchase and placement of the order. Failure to inspect prior to placement of an order is deemed a waiver of Buyer’s right to inspect. Buyer is responsible for determining the suitability of the equipment for its application. Seller assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the equipment will be installed and operated by qualified personnel. The Buyer agrees that the Seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased. The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty. INDEMNITY Buyer shall be solely liable for, and shall defend, indemnify, and hold Seller, its Affiliates, and all of their respective directors, officers, employees, agents, and independent contractors (“Indemnitees”) harmless from and against any and all damages, liabilities, injuries, losses, costs (including reasonable attorneys and experts fees at trial and on appeal), and expenses which may be incurred by, asserted against, or recoverable from any Indemnitee as a result of any actual or threatened action, suit or proceeding arising out of or relating in any way to the purchase of equipment from Seller. The validity and interpretation of this Agreement and the enforcement thereof shall be governed by the laws of the State of California without regard to any principles governing conflicts of laws. Any dispute arising from the purchase of equipment from Seller must be resolved in the State Courts of California. Pictures sell!Auctiva offers Free Image Hosting and Editing.The complete eBay Selling Solution. .aucCounter a { text-decoration:none; }.aucCounter span:hover { text-decoration:underline; }.aucHiddenCounter { display:none; }.aucCounterOrangeText { color:#FB6D05; font-family:Arial; Font-size:13px; Font-weight:bold; }.aucCounterBlueText { color:#0068ac; Font-family:Arial; Font-size:11px; } Track Page Views WithAuctiva's Counter
